Product Description:

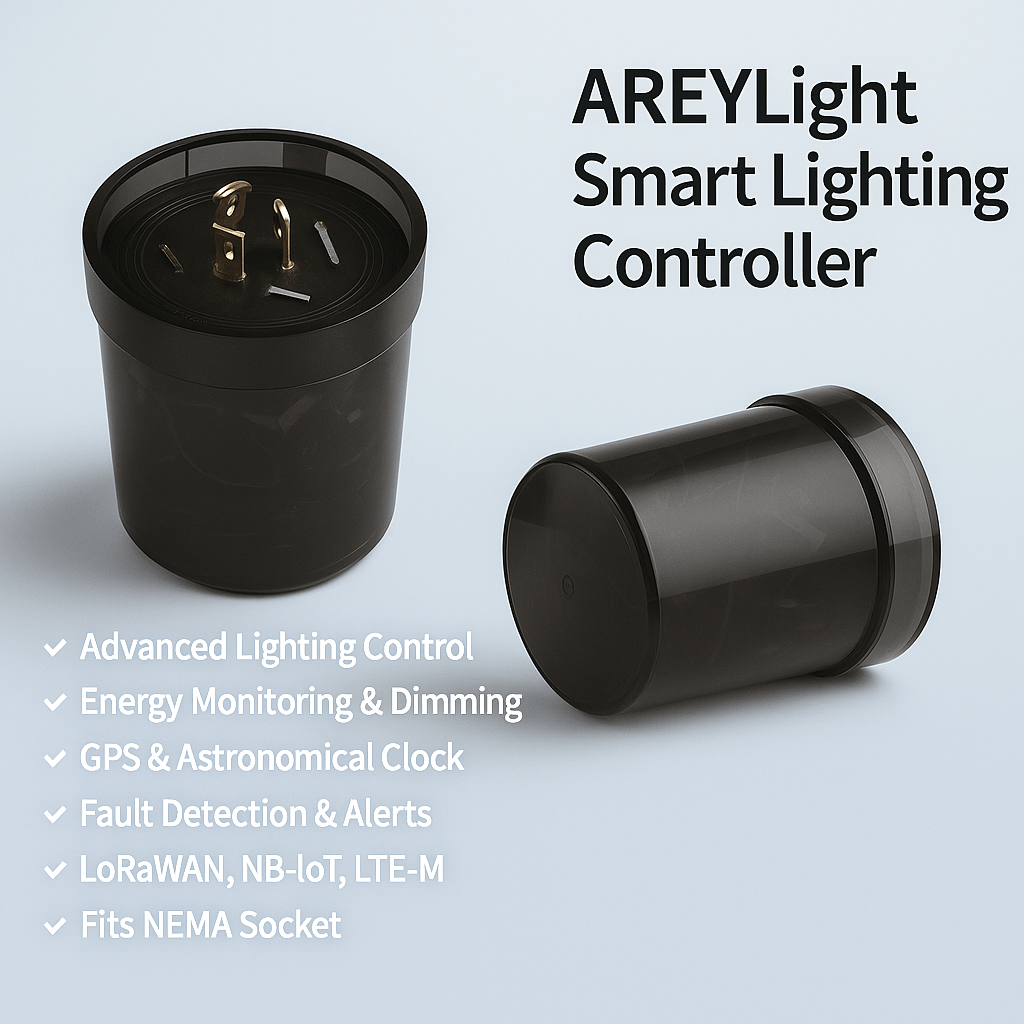

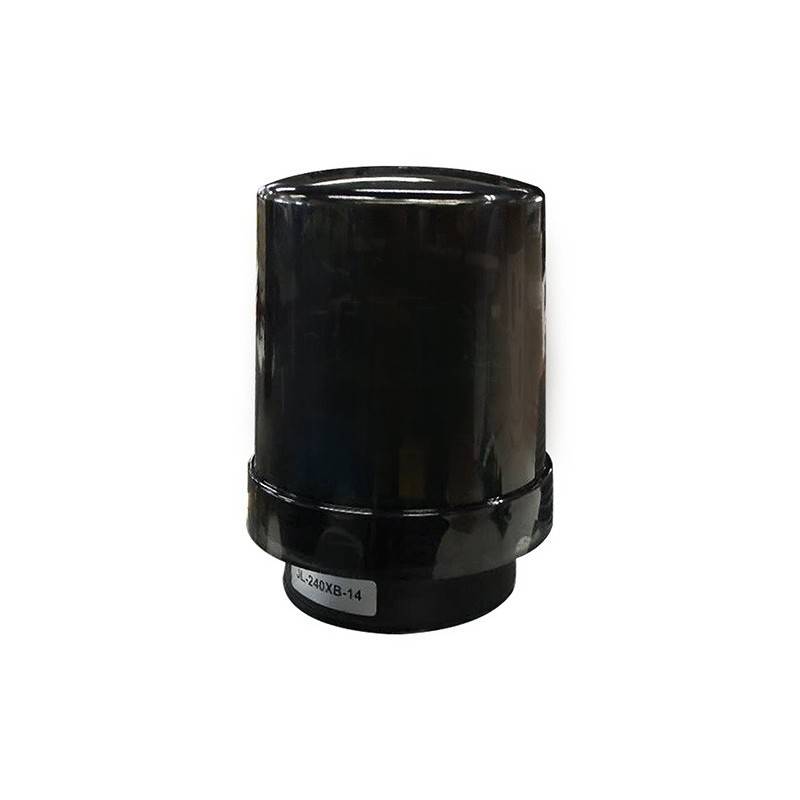

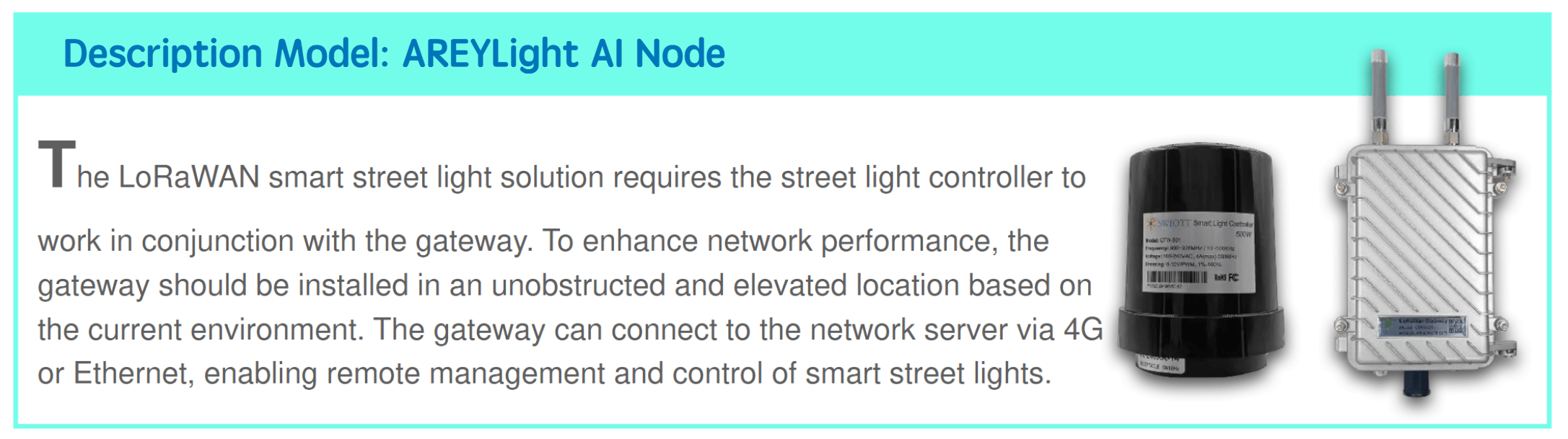

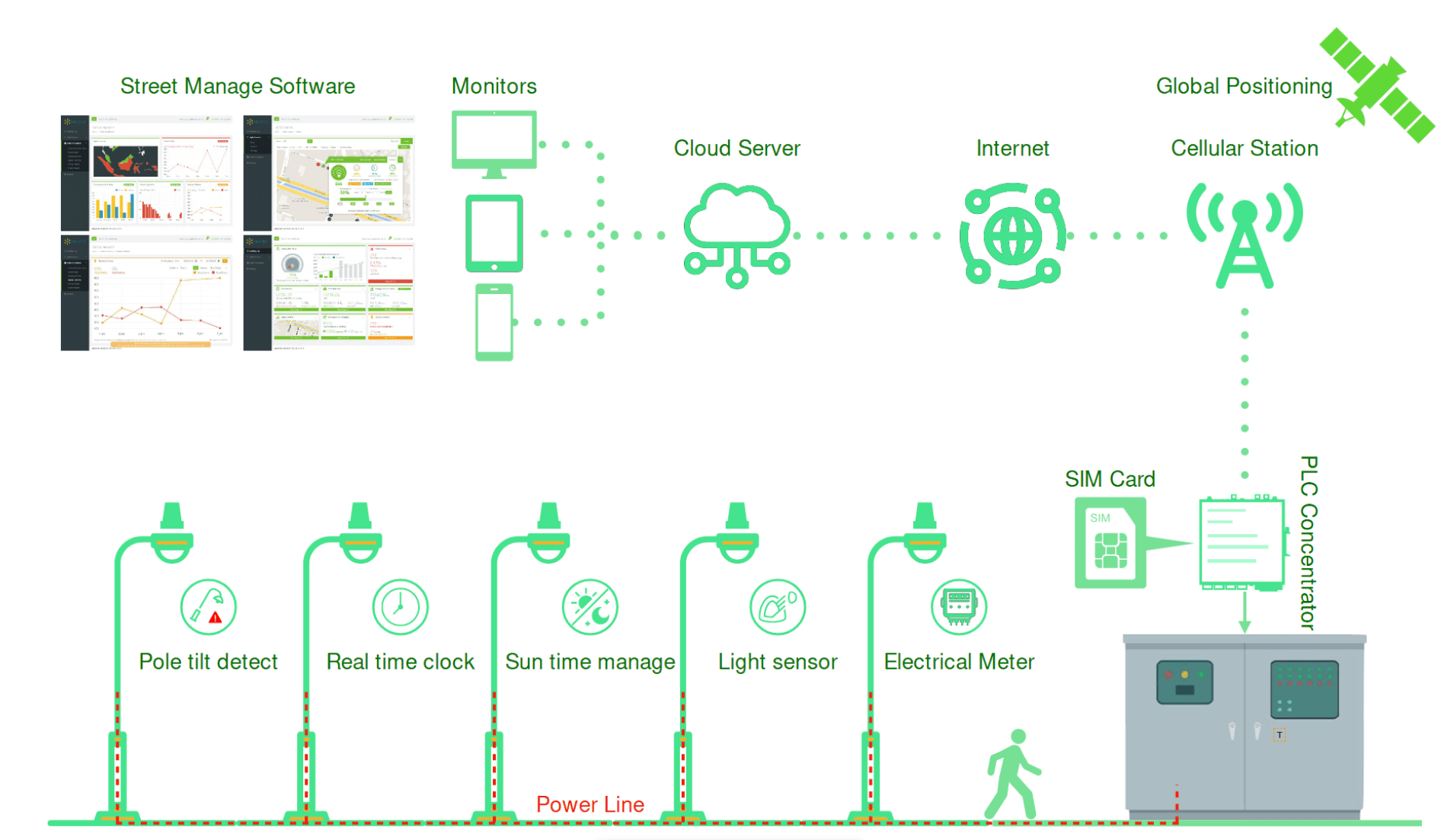

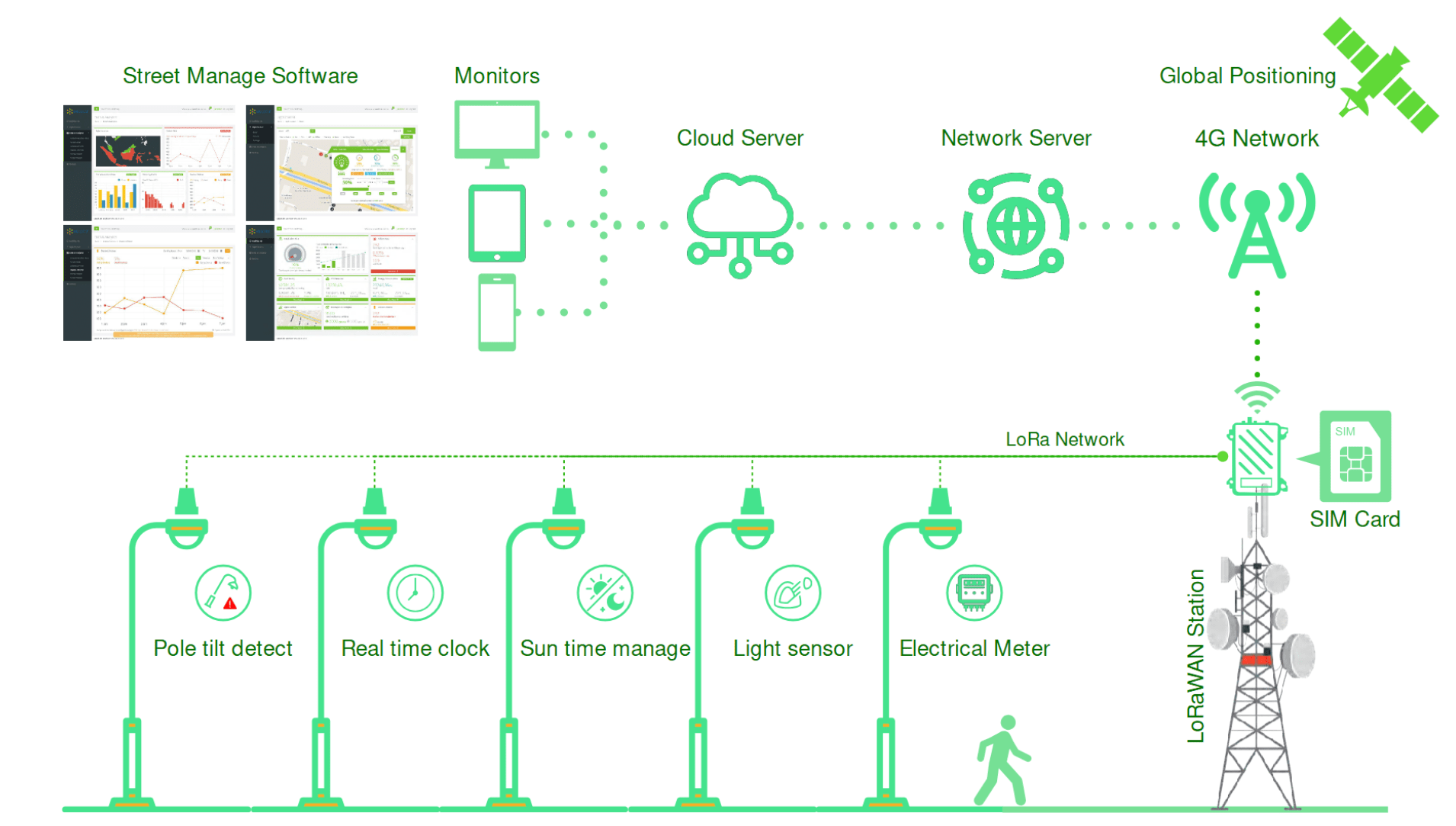

The AREYLight AI Smart Lighting Controller is a next-generation IoT-based device that enables intelligent control, energy optimization, and real-time monitoring of public lighting infrastructures. With full support for LoRaWAN, NB-IoT, CAT-M, GSM, and PLC hybrid protocols, this controller transforms every luminaire into a connected, data-driven asset.
Perfect for both new installations and retrofits, it provides seamless integration with your smart city ecosystem and centralized management platforms. Real-time energy metering, motion detection, pole-tilt monitoring, and satellite-based sunrise/sunset automation are all packed into a compact, robust, and weatherproof unit.
.

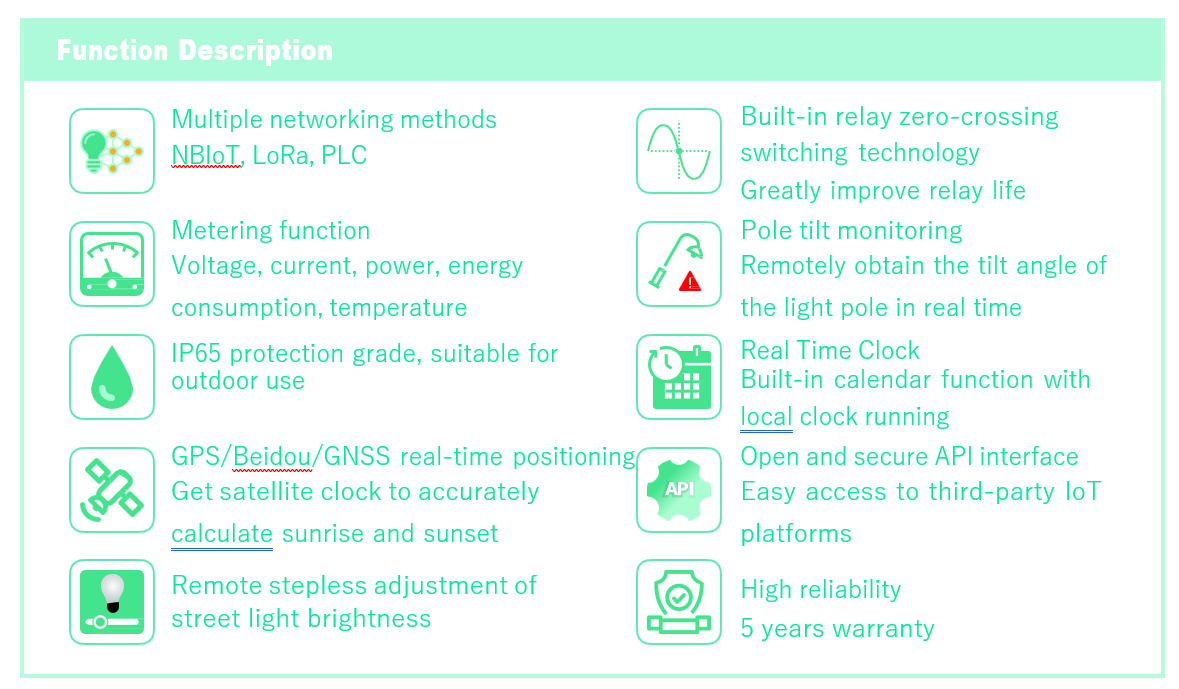

Key Features:

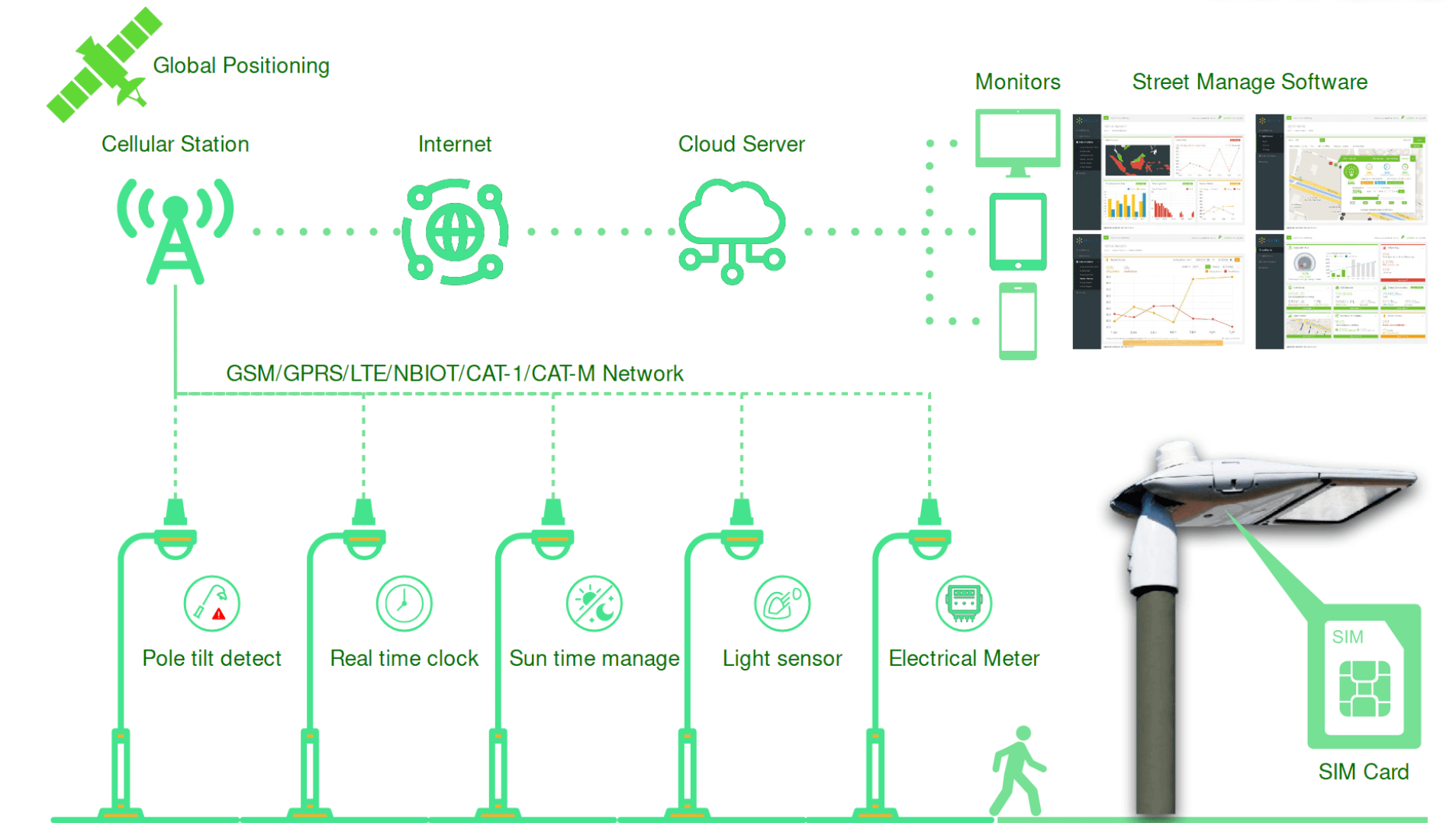

✅ Multi-Protocol Communication: LoRaWAN, NB-IoT, CAT-M, GSM, PLC & Hybrid options
✅ Real-Time Monitoring: On/off, dimming control, fault detection, and alarms
✅ Energy Metering: Tracks voltage, current, power, temperature, and energy consumption
✅ Astronomical Scheduling: Built-in real-time clock calculates local sunrise/sunset using GPS
✅ Pole Tilt Monitoring: Sends alerts for potential hazards or maintenance needs
✅ GPS & Location Intelligence: Automatically uploads exact geo-coordinates on installation
✅ Weatherproof Housing: IP65/IP67 protection suitable for harsh outdoor conditions
✅ Open API Access: Easily integrates with third-party smart city or SCADA platforms

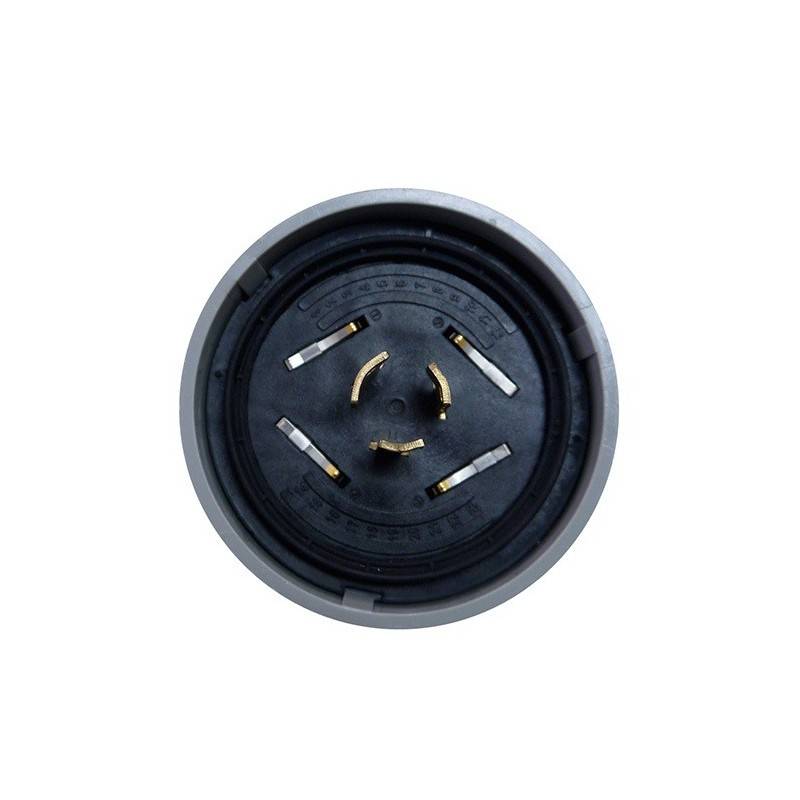

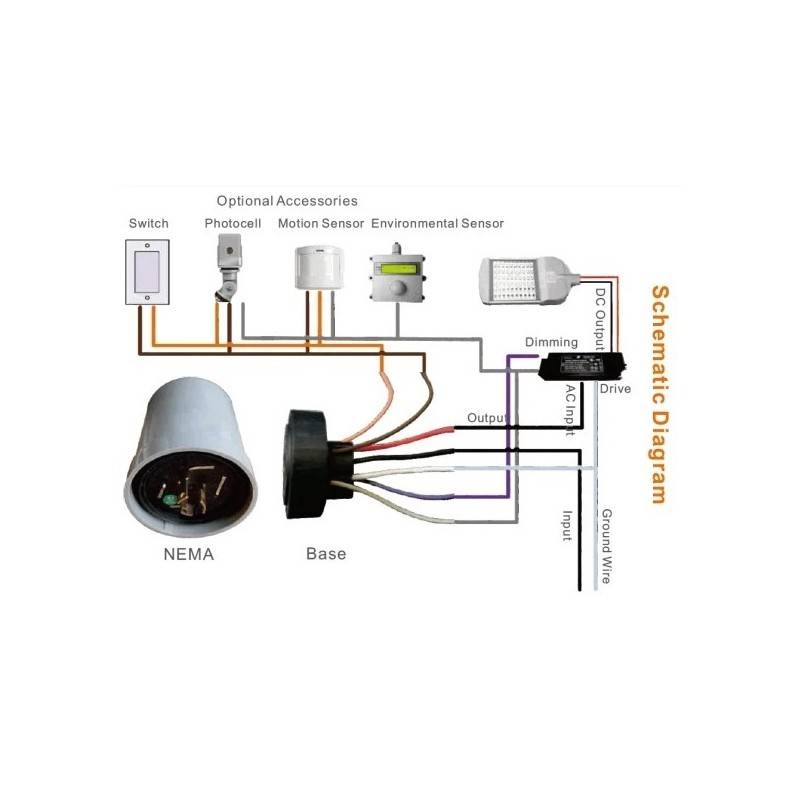

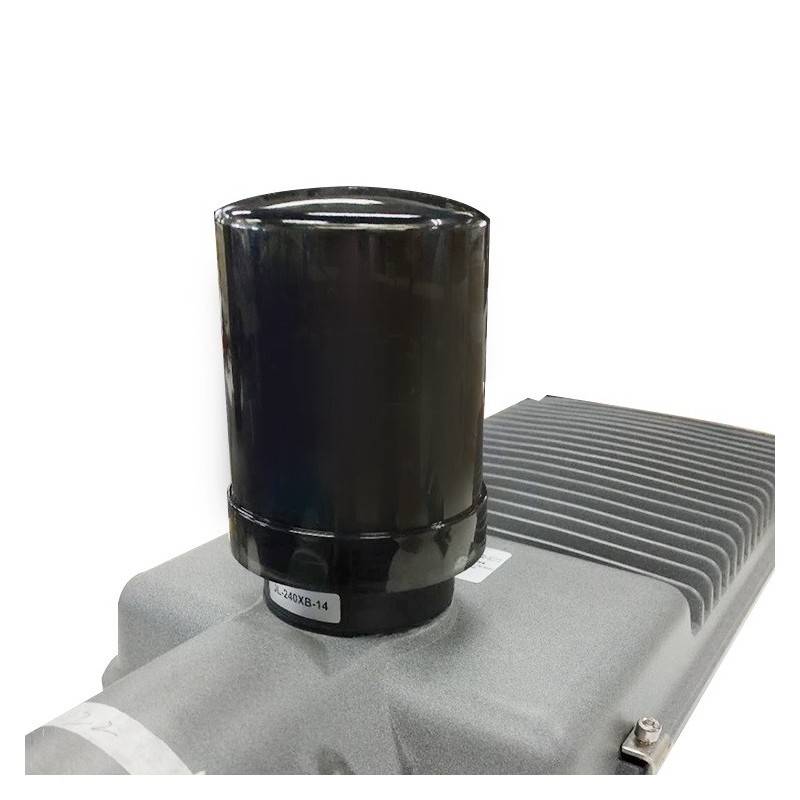

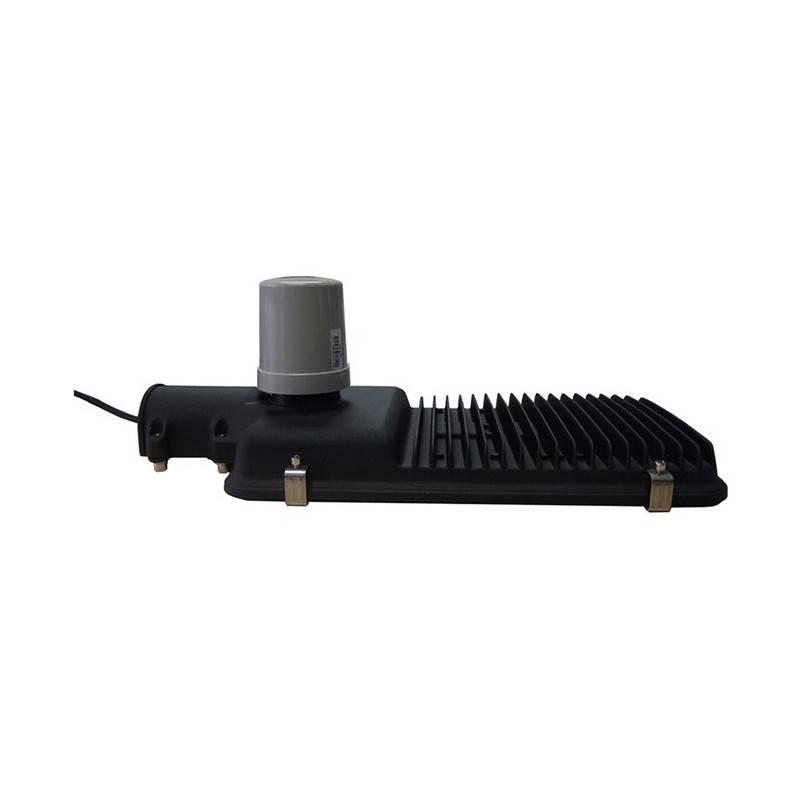

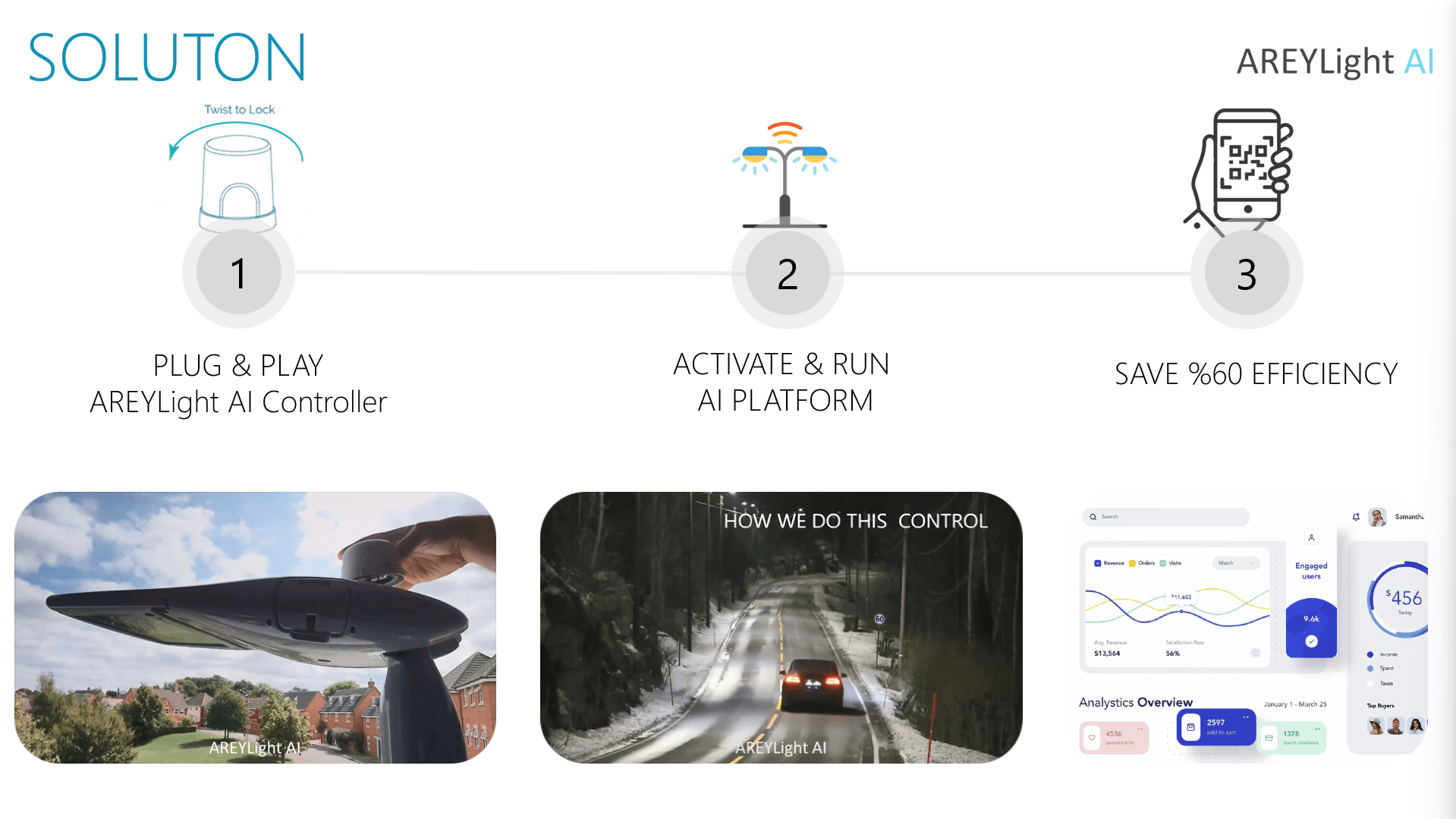

✅ Plug & Play Compatibility: Zhaga Book 18 or NEMA C136.41 installation options
✅ Battery Backup Optional: Controller keeps logging during grid loss (custom version)
Ideal for smart cities, municipalities, industrial zones, campuses, and security-critical environments, this advanced solution significantly reduces energy costs, carbon emissions, and maintenance downtime while enhancing street-level safety and visibility.
🧠 Core Features:
| Feature | Description |
|---|---|
| Smart Motion Sensor | Integrated 24GHz radar-based sensor, capable of detecting both pedestrian and vehicle movement. Adjustable sensitivity and dimming response reduce energy use. |
| Built-in Battery & Solar Panel | Lithium-ion battery pack + high-efficiency mono-crystalline solar panel with MPPT charging system. Operates off-grid with 3–5 days autonomy. |
| AI-based Controller | Real-time decision making via edge-AI: smart dimming, predictive maintenance, anomaly detection. |
| Communication Protocols | Supports LoRaWAN, NB-IoT, CAT-M1, GSM. Optional hybrid mode. MQTT-compatible. |
| GPS + Tilt Detection | Real-time GPS coordinates upload during installation. Pole tilt monitoring to detect physical impact or vandalism. |
| Remote Monitoring & Control | Fully cloud-integrated with AREYLight’s smart city platform. Monitor voltage, current, power, temperature, failures, and energy usage. |
| Calendar-based Dimming | Integrated RTC and astronomical clock enable time-based dimming schedules based on sunrise/sunset and seasonal daylight cycles. |
| Weatherproof & Resilient | IP67 waterproof rating, -40°C to +70°C operating range. 10KV lightning protection. Maintenance-free industrial design. |
📐 Technical Specifications:
| Feature | Details |
|---|---|
| Communication | LoRaWAN, NB-IoT, CAT-M, PLC, GSM, Dual-Mode |
| Power Supply | 12V/24V DC (compatible with solar/off-grid setups) |
| Measurement Parameters | Voltage, Current, Power, Temperature, Energy |
| Installation Type | Zhaga Book 18 / NEMA C136.41 / DIN Rail |
| Dimming Control | 0–100% Stepless Dimming (0-10V, PWM, DALI) |
| Ingress Protection | IP65 / IP67 Rated, waterproof & dustproof |
| Clock & Scheduler | RTC + UTC Clock with Astronomical Dimming File |
| Positioning | GPS/GNSS/BD Satellite Sync |
| Tilt Sensor | Built-in gyroscope for pole angle detection |
| Data Interface | MQTT / RS485 / RESTful API / OpenAPI |
| Warranty | 5-Year Manufacturer Warranty |
Benefits:

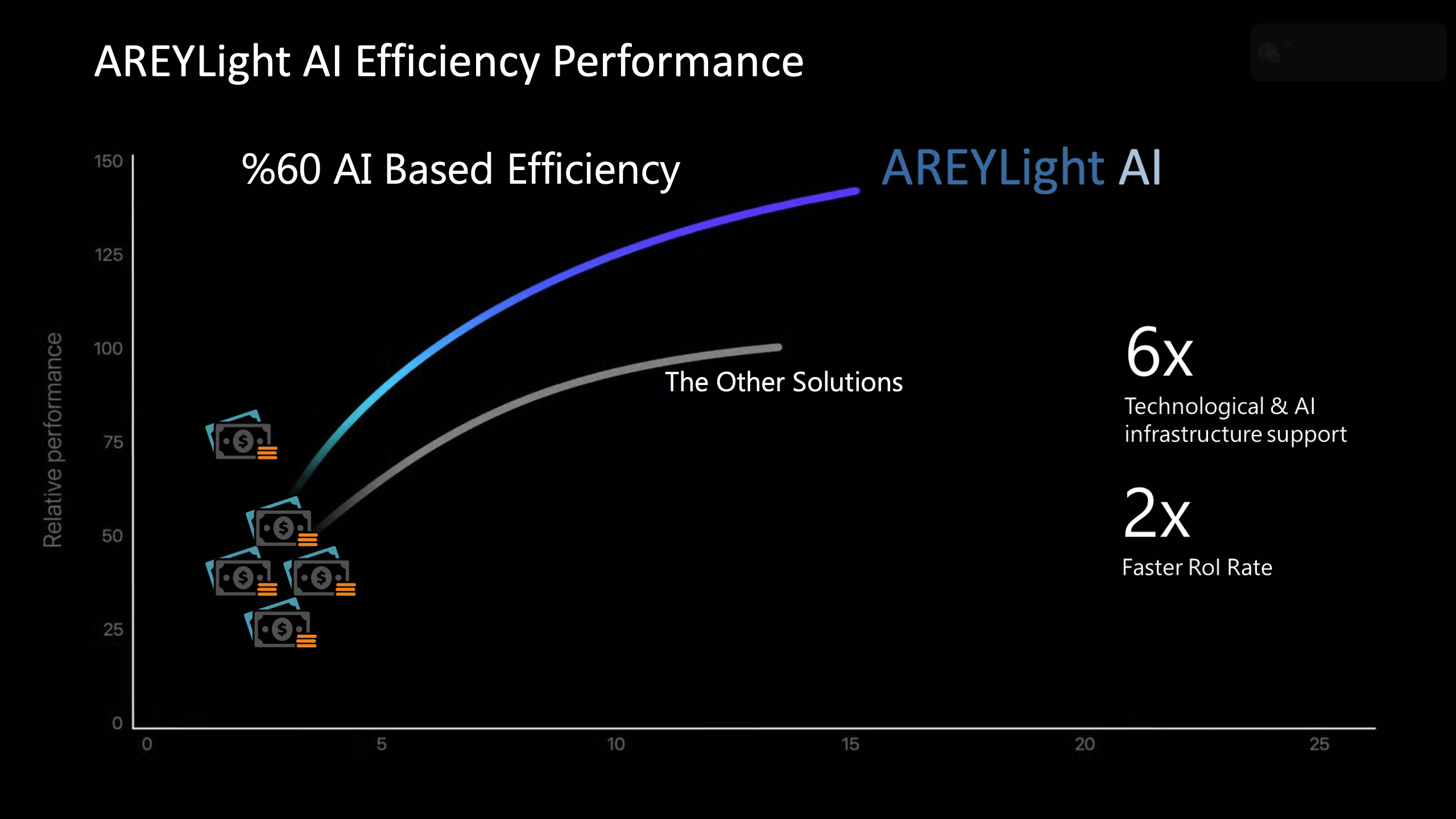

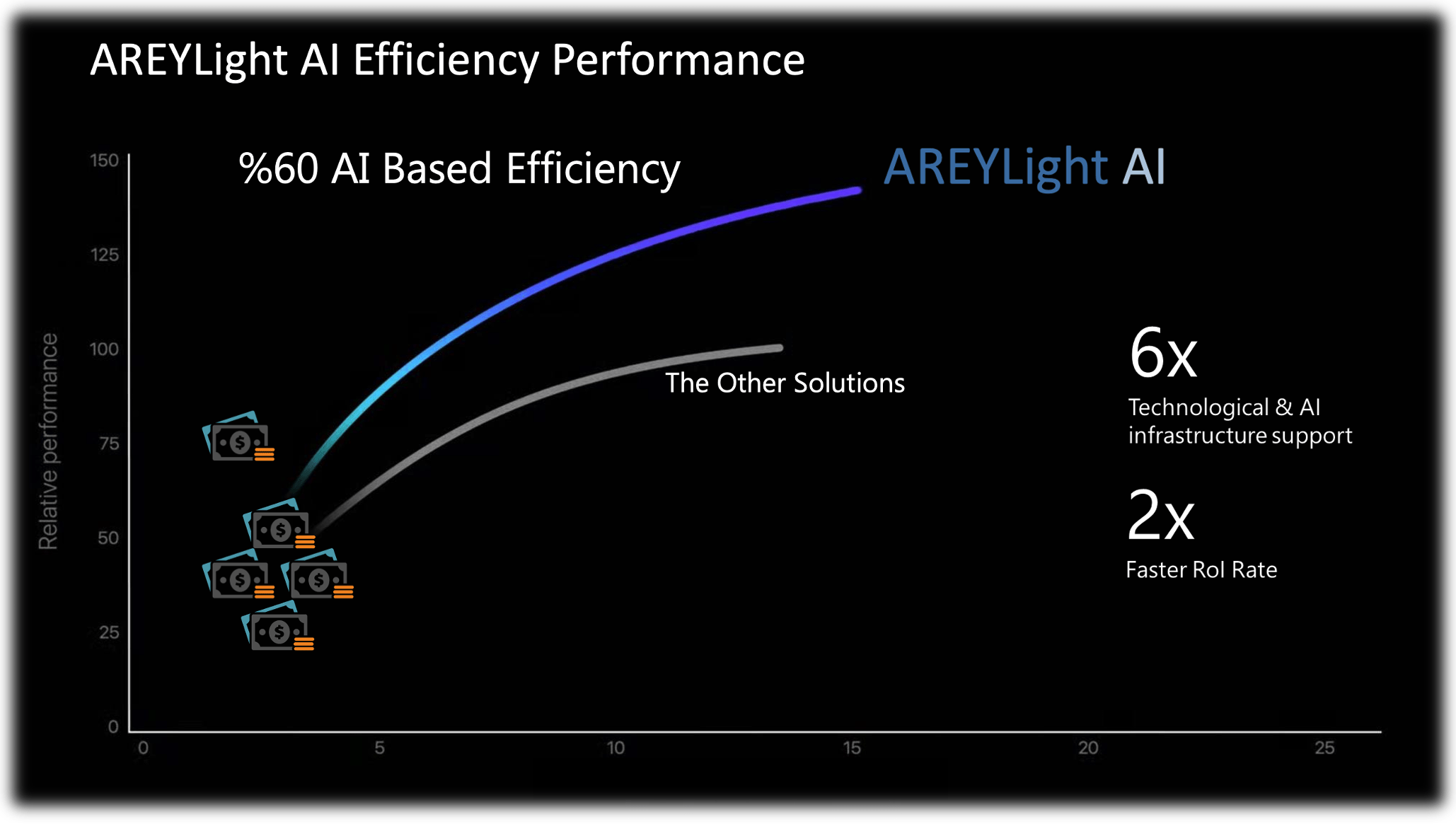

🌍 Energy Efficiency: Save up to 60% on electricity consumption
🛠️ Lower Maintenance Costs: Instant fault detection and remote diagnostics
🔒 Enhanced Safety: Real-time pole tilt alerts and light level automation
🌐 Smart Integration: Compatible with cloud dashboards and edge computing nodes
📊 Data-Driven Planning: Visualize energy usage, faults, and asset location in real time
🌱 Sustainability Focus: Enables low-carbon, net-zero strategies for cities

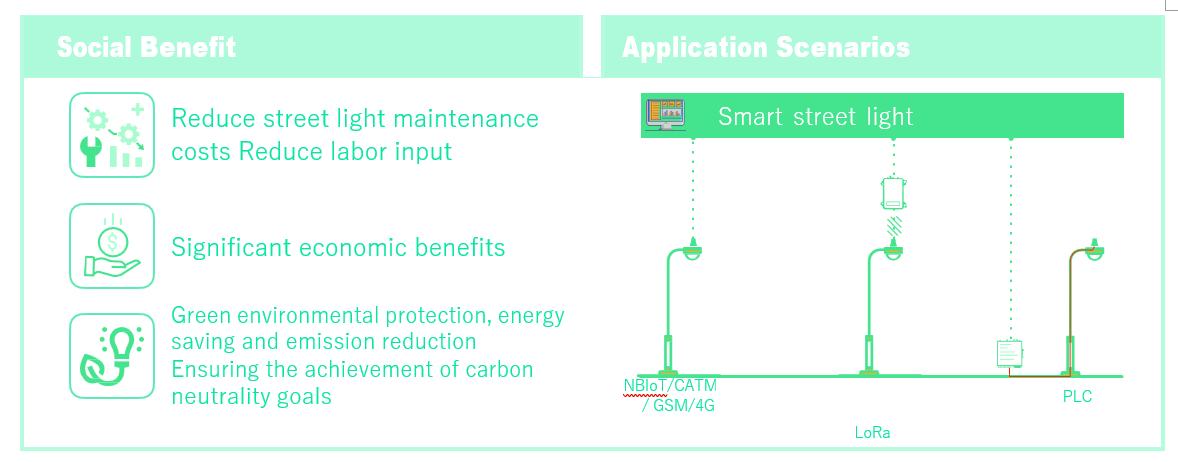

Use Cases:
Urban Smart Street Lighting
Airport Runways & Perimeter Lighting
Seaport & Logistics Zones
Public Parks, Campuses, and Parking Areas
Tunnels, Highways, and Remote Industrial Zones
What’s in the Box:
1× AREYLight AI Smart Controller
Mounting Accessories (Zhaga / NEMA)
Configuration Manual & Documentation
Warranty & Registration Card
Documentation & Downloads:
Ordering & Support:
Want to integrate this controller into your smart infrastructure project? Contact us for B2B pricing, pilot programs, or full-scale rollout options.
